Chain Inspection Unit

Check Chain Links for Surface Cracks

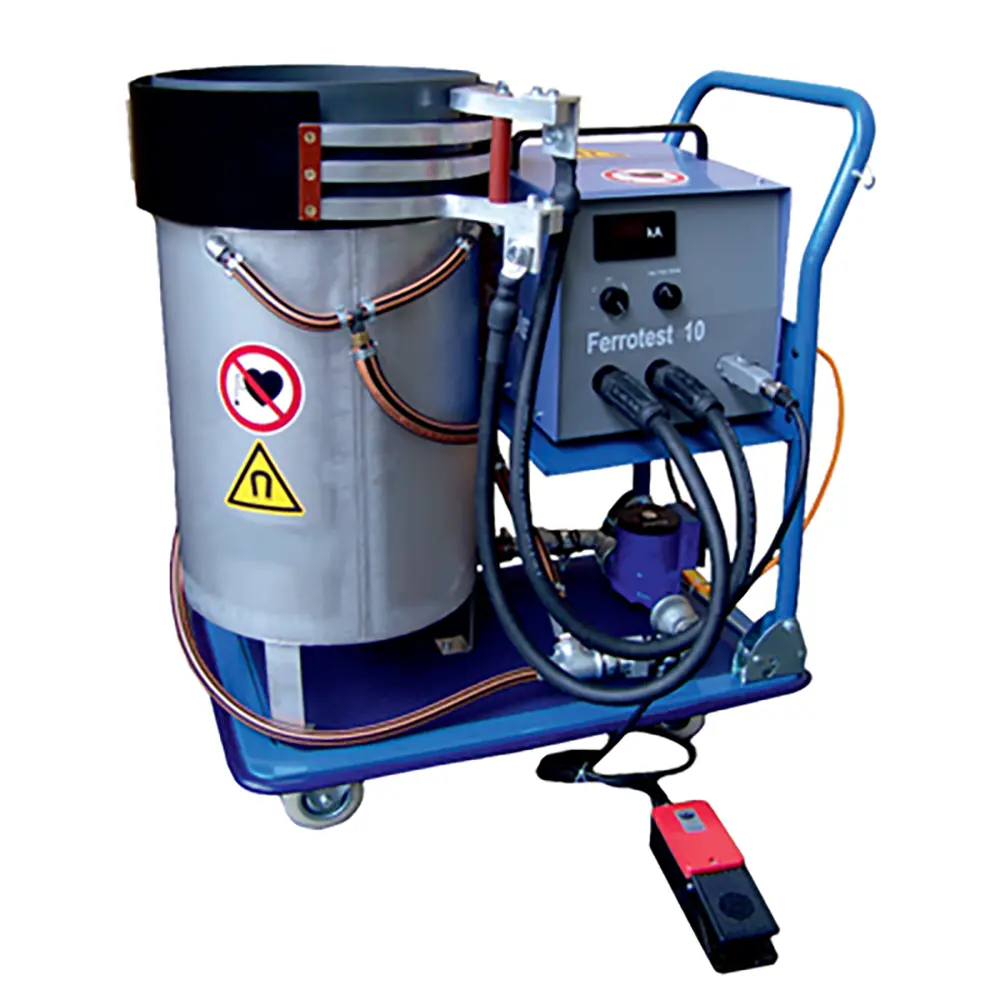

The compact design of our mobile chain inspection unit is ideal for use on-site. It can also be used as a stationary system. The standard unit is equipped with:

  • Ferrotest 10 or GWH 15
  • Foot switch to control the inspection current
  • Closed magnetising coil ⌀ 350 mm (working height of the coil approx. 840 mm)
  • Test liquid drip tray with test liquid pump (contents approx. 5 litres)
Category: Tag:
FEATURES
  • High-current cables.
  • Fixed on a moveable trolley.
  • Two lockable guides and two fixed rollers.
  • Test liquid pump complies with IP 64.
  • Spraying device including valve for regulation.
  • Multiple socket (switchable) for UV light and pump (connecting cable 1.5 m, mains supply 230 V/50 Hz).
  • Drip tray with coil – easy to disassemble and usable as a stationary system.
PROPERTIES
  • NDT Type: Fluorescent Magnetic Particle Testing, Visible Magnetic Particle Testing.
APPLICATIONS
  • Ideal Application: Check chain links for surface cracks.

Additional information

Volume

25 Litres, 200 Litres
